In [9]:
from ase.visualize.plot import plot_atoms
plot_atoms(a1, radii = 0.5, rotation = '45x,45y,45z')
Out[9]:
<AxesSubplot:>
原始版本的 DFT教程 使用原子模拟环境（ASE）和VASP写作，本教程使用ASE和免费的 Quantum Espresso 进行，同时使用 xespresso 作为ASE和Quantum Espresso交互的界面。
对 DFT 的全面概述超出了本书的范围，因为在文献中很容易找到关于这些主题的优秀评论，建议阅读以下段落。 相反，本章旨在为非专家以本书中使用的方式开始学习和使用 DFT 提供一个有用的起点。 此处提供的大部分信息是专家之间的标准知识，但其结果是目前文献中的论文很少对其进行讨论。 本章的第二个目标是为新用户提供了解大量可用文献的途径，并指出这些计算中的潜在困难和陷阱。
可以在 Sholl 和 Steckel 的 Density Functional Theory: A Practical Introduction 一书中找到对密度泛函理论的现代实用介绍。 Parr 和 Yang parr-yang 编写的一本关于 DFT 的相当标准的教科书。 The Chemist's Guide to DFT koch2001 更具可读性，包含更多用于运行计算的实用信息，但这两本书都侧重于分子系统。 固态物理学的标准教材是 Kittel kittel 和 Ashcroft 以及 Mermin ashcroft-mermin 所著。 两者都有其优点，前者在数学上更严谨，后者更具可读性。 然而，这两本书都不是特别容易与化学相关的。 为此，应参考 Roald Hoffman hoffmann 1987，RevModPhys.60.601 的异常清晰的著作，并遵循 N\o rskov 和同事hammer2000:adv-cat,greeley2002:elect 的工作。
赝势方法是相对于全电子势方法而言的。原子的内层电子波函数振荡很剧烈，于是基函数就需要很多平面波才能收敛，计算量就会很大，而通过模守恒赝势norm-conserved、超软赝势ultra-soft、投影扩展波projector augmented wave等方法，可以有效的减少平面波的个数。
QE官网给出了一个较为完整的赝势数据库（Link ），赝势文件可以直接下载。QE赝势的格式为UPF（Unified Pseudopotential Format）。 QE中不同元素的不同类型赝势（NC，US，PAW）允许混用，不同交换关联（LDA、GGA等）赝势也允许混用，但是在输入文件需要重新设置统一的交换关联近似（input_dft），非共线计算（noncolin=.true.）需要至少一种元素使用非共线(rel)赝势。早期的赝势比较缺少，现在需要混用的情况不常见。
赝势所需截断能ecutwfc和ecutrho需要测试以得到准确的计算结果，以下列出的赝势，作者通常公布出了赝势测试的结果，测试包括对单质及化合物的晶格常数、能带、声子频率、磁矩等的计算，赝势的结果比较是和全电子势进行的，与实验结果的比较是一种参照，即具有相似的误差，误差来源的大部分来自采用的交换关联泛函，所以误差并不是通过赝势的生成而减小的。实际使用中，如果这些计算结果与文献基本一致，则通常说明了赝势及截断能选取的可靠性。
from ase.collections import g2
print(g2.names)
['PH3', 'P2', 'CH3CHO', 'H2COH', 'CS', 'OCHCHO', 'C3H9C', 'CH3COF', 'CH3CH2OCH3', 'HCOOH', 'HCCl3', 'HOCl', 'H2', 'SH2', 'C2H2', 'C4H4NH', 'CH3SCH3', 'SiH2_s3B1d', 'CH3SH', 'CH3CO', 'CO', 'ClF3', 'SiH4', 'C2H6CHOH', 'CH2NHCH2', 'isobutene', 'HCO', 'bicyclobutane', 'LiF', 'Si', 'C2H6', 'CN', 'ClNO', 'S', 'SiF4', 'H3CNH2', 'methylenecyclopropane', 'CH3CH2OH', 'F', 'NaCl', 'CH3Cl', 'CH3SiH3', 'AlF3', 'C2H3', 'ClF', 'PF3', 'PH2', 'CH3CN', 'cyclobutene', 'CH3ONO', 'SiH3', 'C3H6_D3h', 'CO2', 'NO', 'trans-butane', 'H2CCHCl', 'LiH', 'NH2', 'CH', 'CH2OCH2', 'C6H6', 'CH3CONH2', 'cyclobutane', 'H2CCHCN', 'butadiene', 'C', 'H2CO', 'CH3COOH', 'HCF3', 'CH3S', 'CS2', 'SiH2_s1A1d', 'C4H4S', 'N2H4', 'OH', 'CH3OCH3', 'C5H5N', 'H2O', 'HCl', 'CH2_s1A1d', 'CH3CH2SH', 'CH3NO2', 'Cl', 'Be', 'BCl3', 'C4H4O', 'Al', 'CH3O', 'CH3OH', 'C3H7Cl', 'isobutane', 'Na', 'CCl4', 'CH3CH2O', 'H2CCHF', 'C3H7', 'CH3', 'O3', 'P', 'C2H4', 'NCCN', 'S2', 'AlCl3', 'SiCl4', 'SiO', 'C3H4_D2d', 'H', 'COF2', '2-butyne', 'C2H5', 'BF3', 'N2O', 'F2O', 'SO2', 'H2CCl2', 'CF3CN', 'HCN', 'C2H6NH', 'OCS', 'B', 'ClO', 'C3H8', 'HF', 'O2', 'SO', 'NH', 'C2F4', 'NF3', 'CH2_s3B1d', 'CH3CH2Cl', 'CH3COCl', 'NH3', 'C3H9N', 'CF4', 'C3H6_Cs', 'Si2H6', 'HCOOCH3', 'O', 'CCH', 'N', 'Si2', 'C2H6SO', 'C5H8', 'H2CF2', 'Li2', 'CH2SCH2', 'C2Cl4', 'C3H4_C3v', 'CH3COCH3', 'F2', 'CH4', 'SH', 'H2CCO', 'CH3CH2NH2', 'Li', 'N2', 'Cl2', 'H2O2', 'Na2', 'BeH', 'C3H4_C2v', 'NO2']
一些更加复杂的分子结构可以使用 ASE 内置的 PubChem api 接口查询，使用 ase.data.pubchem.pubchem_atoms_search() 命令从 PubChem 数据库中直接获取分子结构。
实例如下：
from ase.data.pubchem import pubchem_atoms_search, pubchem_atoms_conformer_search
cumene = pubchem_atoms_search(name='cumene')
benzene = pubchem_atoms_search(cid=241)
ethanol = pubchem_atoms_search(smiles='CCOH')
C:\Users\liuto\AppData\Roaming\Python\Python39\site-packages\ase\data\pubchem.py:79: UserWarning: The structure "cumene" has more than one conformer in PubChem. By default, the first conformer is returned, please ensure you are using the structure you intend to or use the `ase.data.pubchem.pubchem_conformer_search` function
warnings.warn('The structure "{}" has more than one '
from ase.build import bulk
a1 = bulk('Cu', 'fcc', a=3.6)
a2 = bulk('Cu', 'fcc', a=3.6, orthorhombic=True)
a3 = bulk('Cu', 'fcc', a=3.6, cubic=True)
print(a1.cell, '\n', a2.cell, '\n', a3.cell)
Cell([[0.0, 1.8, 1.8], [1.8, 0.0, 1.8], [1.8, 1.8, 0.0]]) Cell([2.545584412271571, 2.545584412271571, 3.6]) Cell([3.6, 3.6, 3.6])
from ase.visualize.plot import plot_atoms
plot_atoms(a1, radii = 0.5, rotation = '45x,45y,45z')
<AxesSubplot:>
可以使用 ase.spacegroup.crystal 命令从空间群信息创建晶体结构。根据 Materials Project 中 mp226 黄铁矿结构信息创建结构的示例如下：
# build pyrite crystal follow mp226 structure
from ase.spacegroup import crystal
from ase.visualize.plot import plot_atoms
a = 0.3849
b = 5.4281
c = 90
pyrite = crystal(symbols=['Fe', 'S'],
basis=[(0, 0, 0), (a, a, a)],
spacegroup=205,
cellpar=[b, b, b, c, c, c])
# 输出晶体结构图像
plot_atoms(pyrite, rotation = '45x, 45y, 45z', radii = 0.3)
# 输出结构基本信息
pyrite
Atoms(symbols='Fe4S8', pbc=True, cell=[5.4281, 5.4281, 5.4281], spacegroup_kinds=...)
import matplotlib.pyplot as plt
from ase.build import fcc111
from ase.visualize.plot import plot_atoms
slab = fcc111('Al', size=(2,2,3), vacuum=10.0)
fig, ax = plt.subplots(figsize = (7,7))
plot_atoms(slab, ax, rotation = '90x, 45y', radii = 0.5)
<AxesSubplot:>
可以使用 ase.build.surface 或 ase.build.surfaces_with_termination.surfaces_with_termination 命令切割表面或具有特定终止原子的表面结构。
例如，切割三层具有单侧 10 Å 真空曾的黄铁矿 (100) 表面可以使用 surface(pyrite, (1,0,0), 3, 10) 命令。
类似的，可以使用 surfaces_with_termination(lattice = pyrite, indices= (1,0,0), layers=3, vacuum = 10, termination='S') 切割以 S 原子终止的表面。
需要注意： 特定终止的表面可能有多种形式，需要进行选择，如下实例：
from ase.build import surface
from ase.build.surfaces_with_termination import surfaces_with_termination
import matplotlib.pyplot as plt
from ase.visualize.plot import plot_atoms
# pyrite 100 surface
pyrite_100 = surface(pyrite, (1,0,0), 3, 10)
# pyrite 100 surface with S termination
pyrite_100_S = surfaces_with_termination(lattice = pyrite, indices= (1,0,0), layers=3, vacuum = 10, termination='S')
fig, axs = plt.subplots(nrows = 1, ncols= 3, figsize = (7, 7))
plot_atoms(pyrite_100, axs[0], rotation = '90x, 45y', radii = 0.5)
axs[0].set_title('pyrite (100) slab')
plot_atoms(pyrite_100_S[1], axs[1], rotation = '90x, 45y', radii = 0.5)
axs[1].set_title('pyrite (100) S slab 1')
plot_atoms(pyrite_100_S[2], axs[2], rotation = '90x, 45y', radii = 0.5)
axs[2].set_title('pyrite (100) S slab 2')
Text(0.5, 1.0, 'pyrite (100) S slab 2')
from ase import Atoms
from xespresso import Espresso
psu = {'N': 'N.pbe-n-kjpaw_psl.1.0.0.UPF'}
calc = Espresso(label='scf/nitrogen',
pseudopotentials=psu,
occupations='smearing',
ecutwfc = 50,
ecutrho = 400,
degauss=0.1,
kpts=None)
# 计算原子的能量
atom = Atoms('N')
atom.center(vacuum=3)
atom.calc = calc
e_atom = atom.get_potential_energy()
# 计算分子的能量
d = 1.1
molecule = Atoms('2N', [(0., 0., 0.), (0., 0., d)])
molecule.center(vacuum=3)
molecule.calc = calc
e_molecule = molecule.get_potential_energy()
# 计算原子化能
e_atomization = e_molecule - 2 * e_atom
print('Nitrogen atom energy: %5.2f eV' % e_atom)
print('Nitrogen molecule energy: %5.2f eV' % e_molecule)
print('Atomization energy: %5.2f eV' % -e_atomization)
=============================pw============================= Nitrogen atom energy: -377.88 eV Nitrogen molecule energy: -767.81 eV Atomization energy: 12.04 eV
from ase.build import molecule
from xespresso import Espresso
# 建立水分子结构
water = molecule('H2O')
water.center(vacuum=3)
print('原始结构', water)
# 赝势设置
psu = {'H':'H.pbe-kjpaw_psl.1.0.0.UPF', 'O': 'O.pbe-n-kjpaw_psl.1.0.0.UPF'}
# 建立计算器
calc = Espresso(
# disk_io = 'none', # 不保存波函数文件
calculation = 'relax', # 设置计算类型
pseudopotentials = psu, # 赝势设置
label = 'relax/water', # 计算过程的文件路径
etot_conv_thr = 1e-4, # 优化过程总能收敛阈值 total energy (a.u)
forc_conv_thr = 1e-4, # 优化过程力收敛阈值 forces (a.u)
kpts = None # 使用 Γ 点进行优化
)
# 将计算器附加到结构，并运行计算
water.calc = calc
e = water.get_potential_energy()
print('优化后总能为',e, 'eV')
print('优化后结构为', calc.results['atoms'])
原始结构 Atoms(symbols='OH2', pbc=False, cell=[6.0, 7.526478, 6.596309]) =============================pw============================= 优化后总能为 -599.1541934732669 eV 优化后结构为 Atoms(symbols='OH2', pbc=True, cell=[6.000000104575834, 7.526478131181286, 6.5963101149691035], species=..., calculator=SinglePointDFTCalculator(...))
# 获取高对称点
water.cell.get_bravais_lattice().get_special_points()
# bands计算
calc.nscf(
calculation='bands',
kpts = {'path': 'GRSTUXYZ', 'npoints': 200},
occupations= 'smearing',
degauss = 0.01
)
calc.nscf_calculate()
# 能带绘图
bs = calc.band_structure()
bs.plot()
===========================bands============================
<AxesSubplot:ylabel='energies [eV]'>
# 获取费米能级
fermi = calc.get_fermi_level()
# nscf 计算
calc.nscf(kpts = (5,5,5))
calc.nscf_calculate()
# dos 计算
calc.post(package='dos', Emin = fermi - 10, Emax = fermi + 5, DeltaE = 0.01)
# dos 绘图
from xespresso.dos import DOS
dos = DOS(label = 'relax/water')
dos.read_dos()
dos.plot_dos(color = 'blue')
============================nscf============================ ============================dos============================= Running dos Done: dos =============================pw============================= DEBUG [set_label ]: Directory: relax/water DEBUG [set_label ]: Prefix: water DEBUG [read ]: Try to read information from folder: relax/water. DEBUG [read_convergence ]: JOB DONE DEBUG [read_results ]: Read result successfully! DEBUG [read_convergence ]: JOB DONE DEBUG [read_results ]: Read result successfully!
<AxesSubplot:>
# 使用pp.x绘制电荷密度
calc.post(
package='pp', # use pp.x
prefix = 'water',
outdir = 'relax/water',
plot_num = 0, # select charge density
iflag = 3, # 3D plot
output_format = 6, # for vesta
fileout = 'charge_density.cub' # file name for output
)
=============================pp============================= DEBUG [set_label ]: Directory: relax/water/pp DEBUG [set_label ]: Prefix: water DEBUG [set_queue ]: Espresso command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pp.x -in water.ppi > water.ppo DEBUG [set_queue ]: Queue command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pp.x -in water.ppi > water.ppo Running pp Done: pp

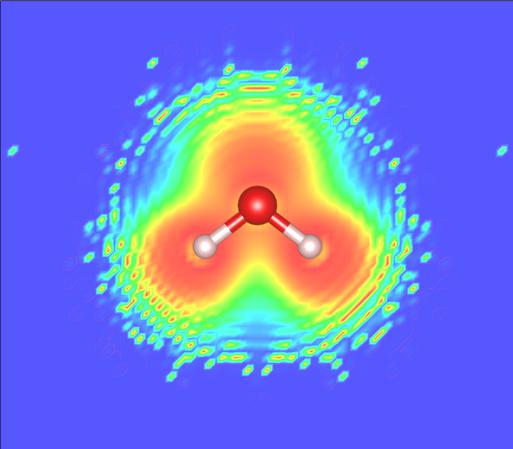

# 电子局域函数的计算
calc.post(
package='pp', # use pp.x
prefix = 'water',
outdir = 'relax/water',
plot_num = 8, # select charge density
iflag = 3, # 3D plot
output_format = 6, # for vesta
fileout = 'water_elf.cub' # file name for output
)
=============================pp============================= DEBUG [set_label ]: Directory: relax/water/pp DEBUG [set_label ]: Prefix: water DEBUG [read_convergence_post]: JOB DONE. DEBUG [post ]: Previous calculation done. DEBUG [check_state_post ]: Parameters changed DEBUG [set_queue ]: Espresso command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pp.x -in water.ppi > water.ppo DEBUG [set_queue ]: Queue command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pp.x -in water.ppi > water.ppo Running pp Done: pp
from xespresso import Espresso
# 构建Cu fcc的111表面
from ase.build import fcc111
slab = fcc111('Cu', size=(1, 1, 3), vacuum=5.0)
# 设置计算器
psu2 = {'Cu': 'Cu.pbe-spn-kjpaw_psl.1.0.0.UPF'}
input_data = {
'ecutwfc': 50,
'ecutrho': 400,
'occupations': 'smearing',
'smearing': 'fd',
'degauss': 0.01,
'mixing_beta': 0.3,
'mixing_mode': 'local-TF'
}
calc = Espresso(
label = 'slab/scf',
debug = True,
tprnfor=True,
pseudopotentials = psu2,
input_data = input_data,
kpts = (4,4,1)
)
slab.calc = calc
# scf计算
slab.get_potential_energy()
# nscf计算
calc.nscf(kpts=(5,5,1))
calc.nscf_calculate()
# # 功函数计算
calc.post(package = 'pp', plot_num = 11, fileout = 'potential.cube', iflag = 3, output_format = 6)
calc.get_work_function()
=============================pw============================= DEBUG [set_label ]: Directory: slab/scf DEBUG [set_label ]: Prefix: scf DEBUG [read ]: Try to read information from folder: slab/scf. DEBUG [read_convergence ]: Not converged, GPU memory used/free/total (MiB): 1316 / 10971 / 12288 DEBUG [read_results ]: Not converged. GPU memory used/free/total (MiB): 1316 / 10971 / 12288 DEBUG [read_results ]: Read output: slab/scf/scf.pwo, failed! DEBUG [check_state ]: Atoms changed, run a new calculation DEBUG [set_queue ]: Espresso command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pw.x -in scf.pwi > scf.pwo DEBUG [set_queue ]: Queue command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pw.x -in scf.pwi > scf.pwo DEBUG [write_input ]: Write input successfully DEBUG [read_convergence ]: JOB DONE DEBUG [read_results ]: Read result successfully! ============================nscf============================ DEBUG [set_label ]: Directory: slab/scf/nscf DEBUG [set_label ]: Prefix: scf DEBUG [set_queue ]: Espresso command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pw.x -in scf.pwi > scf.pwo DEBUG [set_queue ]: Queue command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pw.x -in scf.pwi > scf.pwo DEBUG [read_convergence_post]: JOB DONE. DEBUG [check_state_post ]: File in save changed DEBUG [set_queue ]: Espresso command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pw.x -in scf.pwi > scf.pwo DEBUG [set_queue ]: Queue command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pw.x -in scf.pwi > scf.pwo DEBUG [write_input ]: Write input successfully DEBUG [read_convergence ]: JOB DONE DEBUG [read_results ]: Read result successfully! =============================pp============================= DEBUG [set_label ]: Directory: slab/scf/pp DEBUG [set_label ]: Prefix: scf DEBUG [read_convergence_post]: JOB DONE. DEBUG [post ]: Previous calculation done. DEBUG [check_state_post ]: File in save changed DEBUG [set_queue ]: Espresso command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pp.x -in scf.ppi > scf.ppo DEBUG [set_queue ]: Queue command: mpirun -np 2 /home/liutong/software/qe-7.0/bin/pp.x -in scf.ppi > scf.ppo Running pp Done: pp min: 12.168469357946131, max: 15.168469357946131 The workfunction is 4.90 eV
